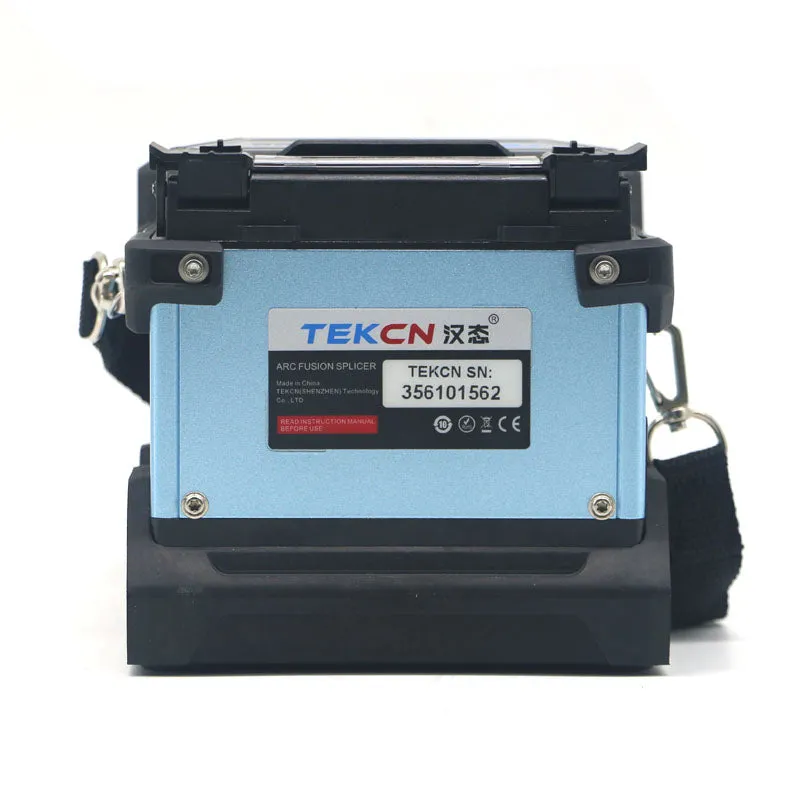

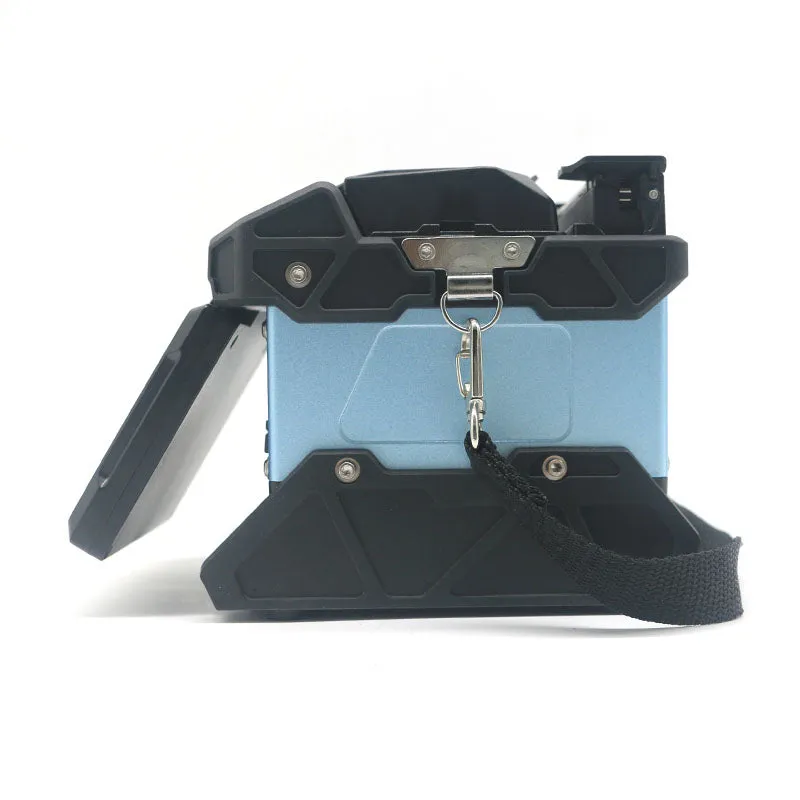

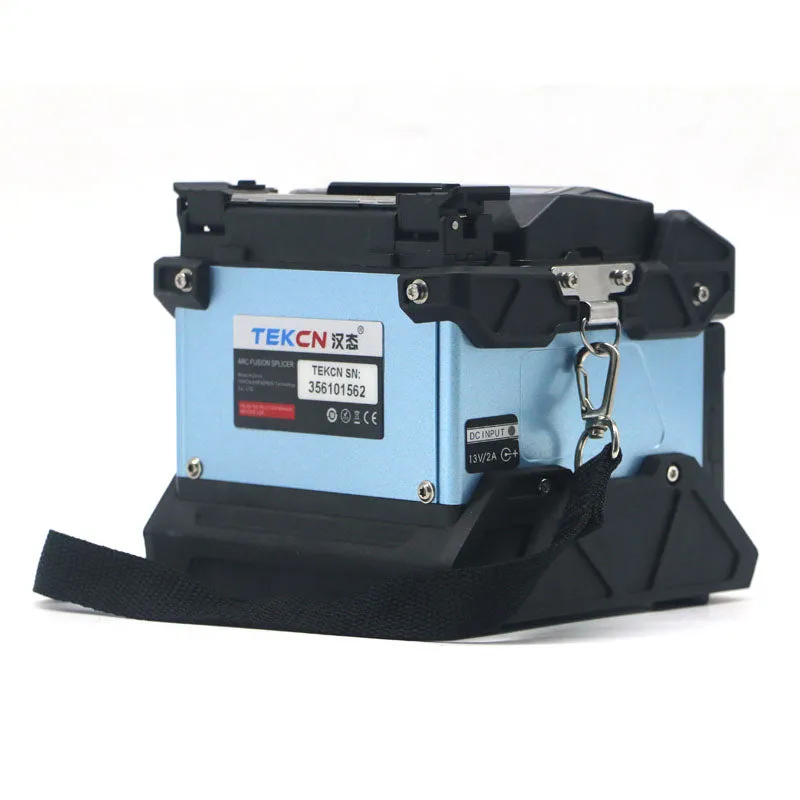

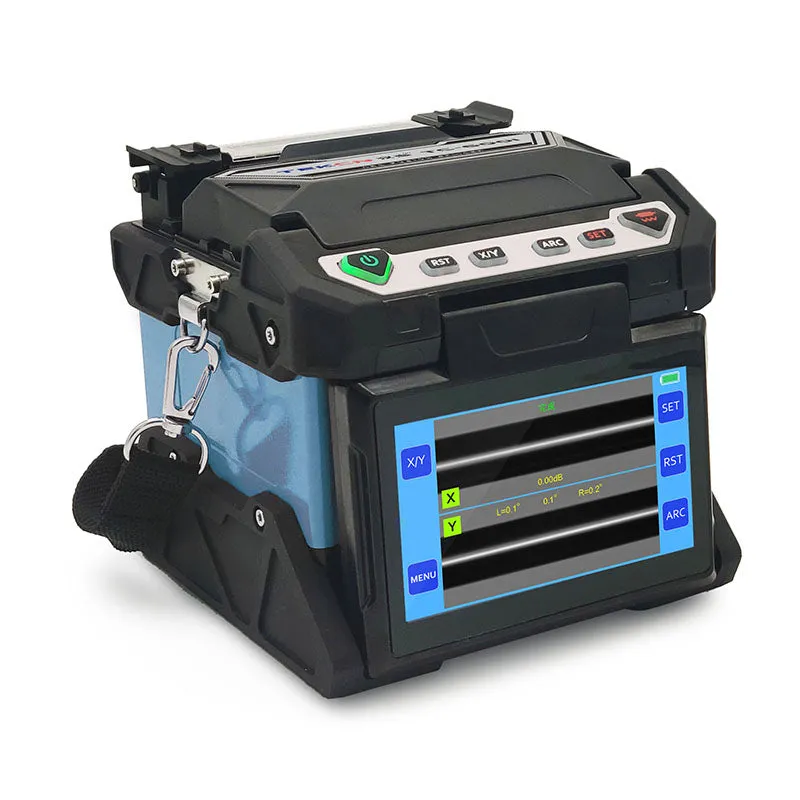

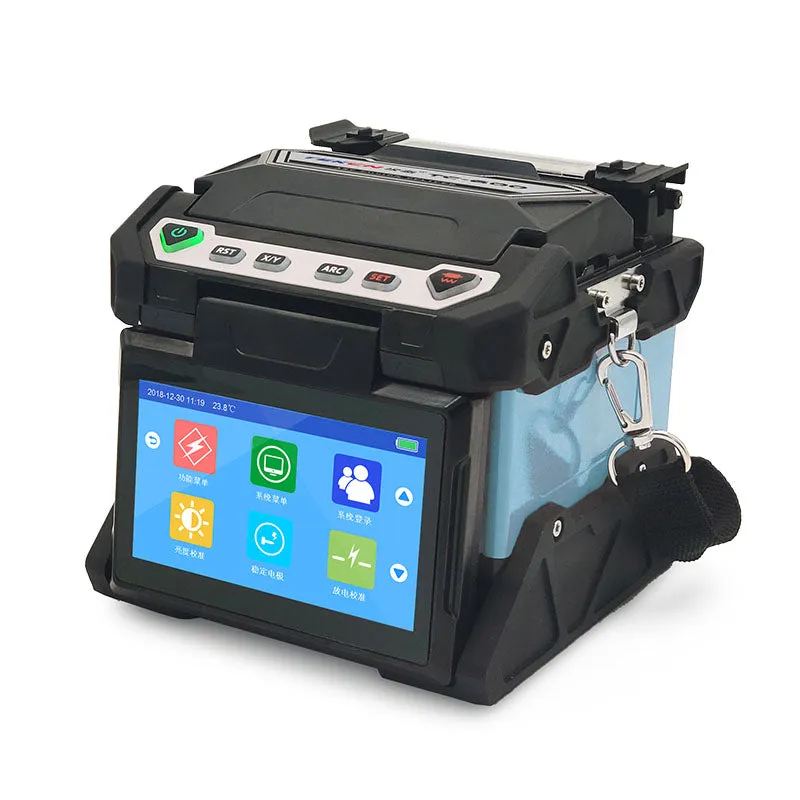

TEKCN TC-400 PAS Core Alignment
-
TEKCN TC-400 PAS Core Alignment
Model Number:TC-400
- Type:Fiber fusion splicer
- Place of Origin: China
- Brand Name:TEKCN
- Use:Fiber Cable Splicing
- Warranty Time:one year
- Product Name:Fiber Cable Splicing Machine
- Sceen:4.3inch HD color touchscreen
- Fiber Alignment:PAS core alignment
- Applicable fibers:Single / SMF/ MMF (G.651), DSF (G.653), NZDSF (G.655), BI(G.657)
- Cladding diameter:80~150μm
- Sheath diameter:100~1000μm
- Cleave length:8~16mm
- Splice mode:Total 100 modes, supports self-defined mode and parameters
- Tension test:2N
- Dimension/ Weight:133W x 144D x 133H (mm) / 1.5kg (1.8kg including battery)
